TECH. ASSIGNMENT GRINDING |

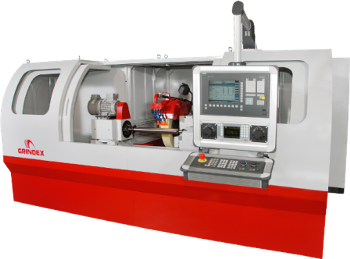

BSC |
700 |
1000 |
1500 |
2000 |
- Distance between centers (mm) |
700 |
1000 |
1500 | 2000 |
- Centre height (mm) |
175 |
175 |
175 |
175 |
- Workpiece weight between centres (max.) |
300 kg |
300 kg |
300 kg |
300 kg |
- Grinding wheel diameter (mm) |
500 |
500 | 500 |
500 |
- Slide fast travel (mm) |
50 |
50 | 50 |
50 |
- Slide swiveling angle (max.) |
± 45º |
± 45º |
± 45º |
± 45º |
- Worktable swiveling angle (max.) |
9º |
7º |
6º |
4º |
- Machine weight (t) |
4 |
4,35 |
4,8 |
5,2 |
- Machine dimensions (mm) |
3304x2230 |
4620x2240 |
5028x2240 |
6080x2250 |
